    GMK NucBox M6 Review: 32 GB Memory With AMD Ryzen 5 6600H

    Sav Anderson

    By Sav Anderson - Jul 8, 2024 | Updated On: 14 July, 2024 | 3 min read

    By Sav Anderson , 3 min read - Jul 8, 2024

    Updated On: 14 July, 2024

    GMK NucBox M6 Review. Image Credit: Social Media.




  • GMK NucBox M6 is a mini PC designed to render elite-level desktop-like performance but in a petite build! This MG 6 is a wonder device with a strong Ryzen processor.

    Today, in this tech article, our mission is to conduct a brief GMK NucBox M6 review and reveal the fantastic specifications, features, strengths, and considerations!

    With an attractive blend of aesthetics and innovative build, GMK NucBox is a strong contender that delivers excellence in performance, storage, and display and is a fantastic choice for gamers.




  • GMK NucBox M6 Review

    The NucBox M6 is now the faster version of the NucBox M5. It features the newer H-series Ryzen 5 6600H, eliminating the U-series Ryzen 7 5700U present in M5.

    This mighty mini PC boasting an AMD processor confirms a crucial step in compact computing, combining powerhouse performance with an innovative design.

    Enchanted by the vigor of the AMD Ryzen 5 6600H processor with Radeon Graphics, this gadget renders brilliant performance with a 6-core 12-thread CPU that can reach a speed of up to 4.5Hz.

    GMKtec Nucbox M6 Gaming Mini PC

    GMKtec Nucbox M6 Gaming Mini PC: Ryzen 5 6600H, 32GB DDR5, 1TB SSD
    GMKtec Nucbox M6 Gaming Mini PC: Ryzen 5 6600H, 32GB DDR5, 1TB SSD

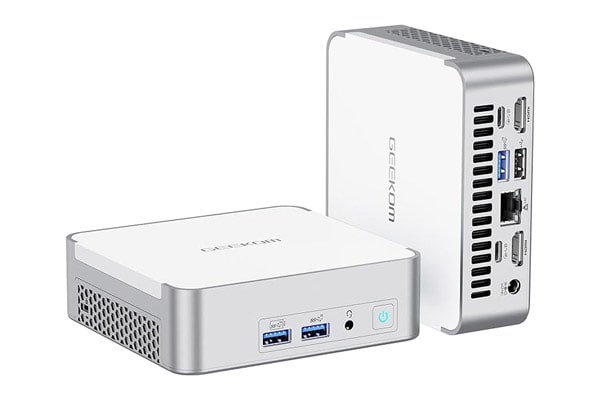

    GEEKOM Mini PC XT13 Pro, 13th Gen Intel i9-13900H Mini Computers
    GEEKOM Mini PC XT13 Pro, 13th Gen Intel i9-13900H Mini Computers
    GMK NucBox M6 Review

    GMK NucBox M6 Review. Image Credit: Instagram.

    Moving along the GMK NucBox M6 review, this Ryzen-powered mini PC is built to support up to three displays, and this means that video output options with HDMI 2.0, DisplayPort, and a USB 4.0 Type-C port will be in excellent condition.




  • As the synonym “mini” suggests, the GMK NucBOX M6 loves its ergonomic dimensions of 128.8 x 127 x 51.8mm, which allow it to adjust and fit easily in any workspace.

    You can get one for yourself at $300, complete with 16 GB of RAM, 512 GB SSD, and Windows 11 Pro, but the starting price can come even more merrier at just $230 for a barebones kit.

    GMK NucBox M6 Specifications

    Let’s learn the essentials of GMK NucBox M6 through the specifications table drafted below. It is not enough to sit convinced going through the GMK NucBox M6 review solely for which this table is addressed:

    Specifications Details
    Operating System Windows 11 Pro
    Security Windows PIN
    Processor (CPU) Brand AMD
    Processor (CPU) Model Ryzen™ 5 6600H
    Processor (CPU) Max Frequency Up To 4.50Ghz
    Processor (CPU) Cores / Threads 6 Cores / 12 Threads
    Processor (CPU) TDP 45W
    Graphics (GPU) Brand AMD
    Graphics (GPU) Model Radeon™ 660M
    Graphics (GPU) Max Frequency 1900 Mhz
    Graphics (GPU) Memory Shared w/ RAM Capacity
    Memory (RAM) Capacity 32GB
    Memory (RAM) Technology DDR5 SO-DIMM
    Memory (RAM) Speed 4800 MT/s
    Storage Capacity 1TB
    Storage Expansion 1x PCI-e 22*80 NVMe Port (Empty), 1x PCI-e 22*80 NVMe Port (Used)
    Storage Technology NVMe PCI-E Gen 3.0, NVMe PCI-E Gen 4.0
    I/O Audio 1x 3.5mm Headphone&Microphone Combo Jack
    I/O USB 1x USB 4.0 Type-C, 4x USB Type-A 3.2
    I/O Video 1x DisplayPort (4K@60Hz), 1x HDMI (4K@60Hz)
    Connectivity Wired, Wireless
    Ethernet 2x RJ45 Ports @ 2500Mbps
    Wi-Fi 6E
    Bluetooth 5.2

    Table Source: droix




  • Be sure to navigate the table stickered above so nothing is left out!

    ALSO READ: Geekbench Saw AMD Ryzen AI 7 Pro 160 Debut: See Its CPU Core Configuration

    What Makes This Product A Powerhouse?

    The GMKTec NucBox M6’s AMD advanced connectivity aspect is simply brilliant, while RZ616 WiFi 6E and Bluetooth 5.2, which AirFly Pro BW also has, ensure a rapid and seamless wireless experience.

    Likewise, the mini-computer is parked with selections of I/O ports, such as USB3.2 Gen2, USB2.0, and dual 2.5G Ethernet ports, which makes it easy for different connectivity options to slither!




  • Adding to the journal of praises, this NucBox has a base clock speed of 3.3GHz and can boost up to 4.5GHz. The 6-core, 12-thread architecture and 3MB of L2 and 16MB of L3 cache invite polished multitasking and staggerless outputs.

    GMK NucBox M6 Review

    GMK NucBox M6 Review. Image Credit: Instagram.

    In a similar fashion, the Radeon Graphics, with six cores running at 1900 MHz, strongly shower powerful graphical performance for gamers, graphic designers, video editors, and other creative professionals.

    Moving ahead in the GMK NucBox M6 review, the 32GB of DDR5 4800MHz RAM works wonderfully, running a dozen applications as swiftly as a breeze.

    The dual SODIMM slots allow for future upgrades, supporting up to 64GB of RAM and giving you the flexibility to enhance your system as your needs grow.




  • Likewise, you might also be interested in learning about the AMD Radeon Pro W7900 Dual Slot GPU Price.

    PROS AND CONS

    Now, it is time to put on the shades of reality and know that a few drawbacks accompany this mini PC, too, just like the overshadowing list of benefits:

    Pros Cons
    • supports 2x M.2 SSDs + 2x DDR5 RAM modules
    • small and firm
    • immensely powerful build and performance
    • feasible serviceability
    • economic
    • DPC issues with imperfect 4K60 video playback
    • has a singular USB-C port with no USB4 support
    • Gets loud under load
    • Not the latest iGPU

    Table Source: droix

    We have landed at the bottom of the GMK NucBox M6 review, hoping that all the information impressed you enough to consider getting this mini product for your setup!




  • FAQs

    Q: Is H-series Ryzen 5 6600H better than Ryzen 7 5700U?

    A: Yes, the H-series Ryzen 5 6600H is a better deal.

    Q: How much does GMK NucBox M6 Cost?




  • A: The GMK NucBox Costs around 300 dollars.
